Scenario:
An Azure Data Factory pipeline must be used to move data from Cosmos DB to SQL Database for Race Central. If the data load takes longer than 20 minutes, configuration changes must be made to Data Factory.
The telemetry data is sent to a MongoDB database. A custom application then moves the data to databases in SQL Server 2017. The telemetry data in MongoDB has more than 500 attributes. The application changes the attribute names when the data is moved to SQL Server 2017.
You can copy data to or from Azure Cosmos DB (SQL API) by using Azure Data Factory pipeline.
Column mapping applies when copying data from source to sink. By default, copy activity map source data to sink by column names. You can specify explicit mapping to customize the column mapping based on your need. More specifically, copy activity:
Read the data from source and determine the source schema
Use default column mapping to map columns by name, or apply explicit column mapping if specified.
Write the data to sink
Write the data to sink
References:
https://docs.microsoft.com/en-us/azure/data-factory/copy-activity-schema-and-type-mapping

See the explanation below.
Explanation
Step 1: Create an Azure Data Factory V2
1. Go to the Azure portal.
2. Select Create a resource on the left menu, select Analytics, and then select Data Factory.

4. On the New data factory page, enter a name.
5. For Subscription, select your Azure subscription in which you want to create the data factory.
6. For Resource Group, use one of the following steps:
Select Use existing, and select an existing resource group from the list.
Select Create new, and enter the name of a resource group.
7. For Version, select V2.
8. For Location, select the location for the data factory.
9. Select Create.
10. After the creation is complete, you see the Data Factory page.
Step 2: Setup of the Integration Runtime Runtime1
High-level steps for creating a linked self-hosted IR

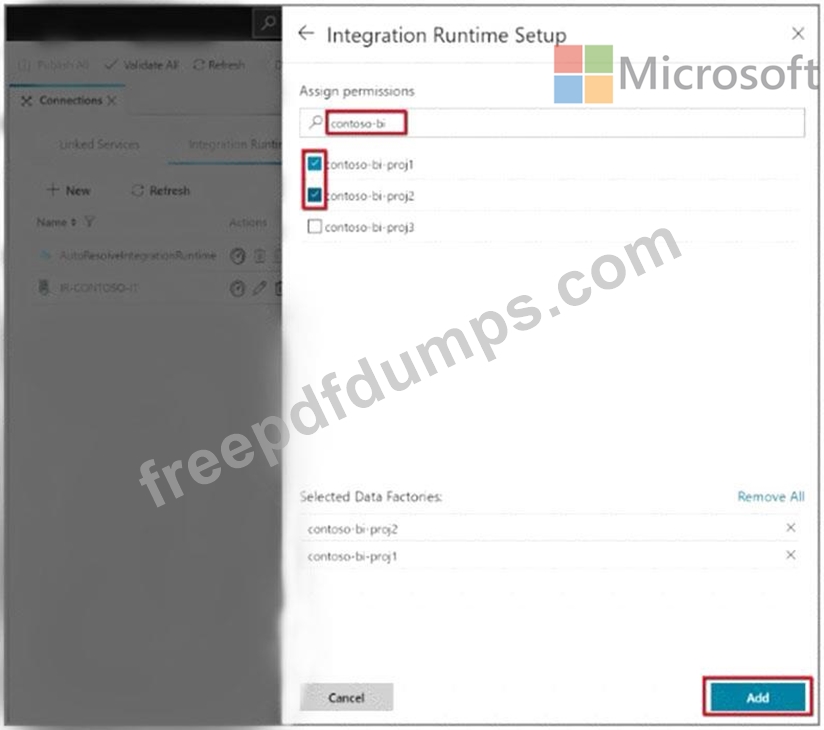

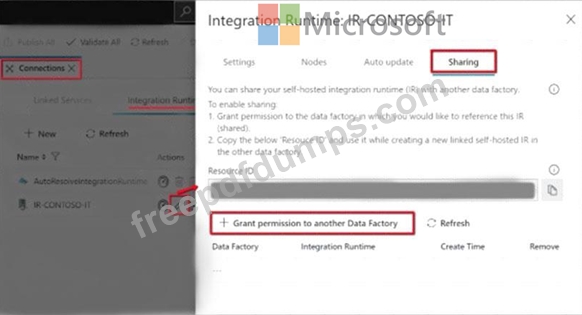

1. In the self-hosted IR Runtime to be shared, click Connections and Grant permission to another Data Factory. .

2. Select the data factory you just created.

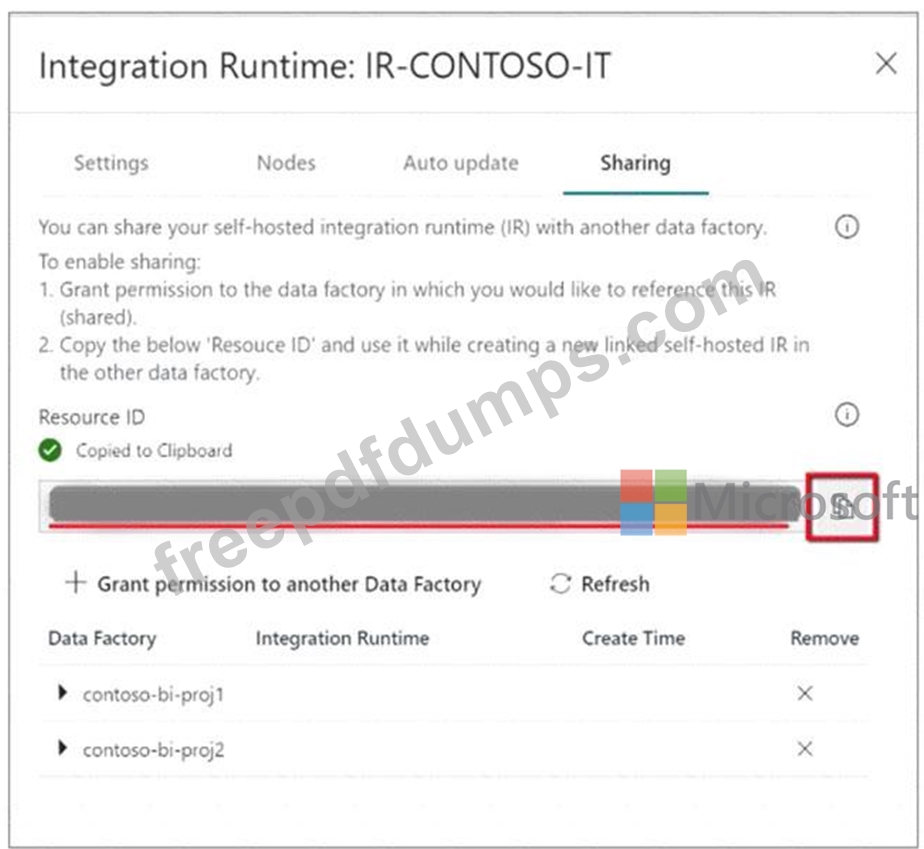

Note the resource ID of the self-hosted IR to be shared.

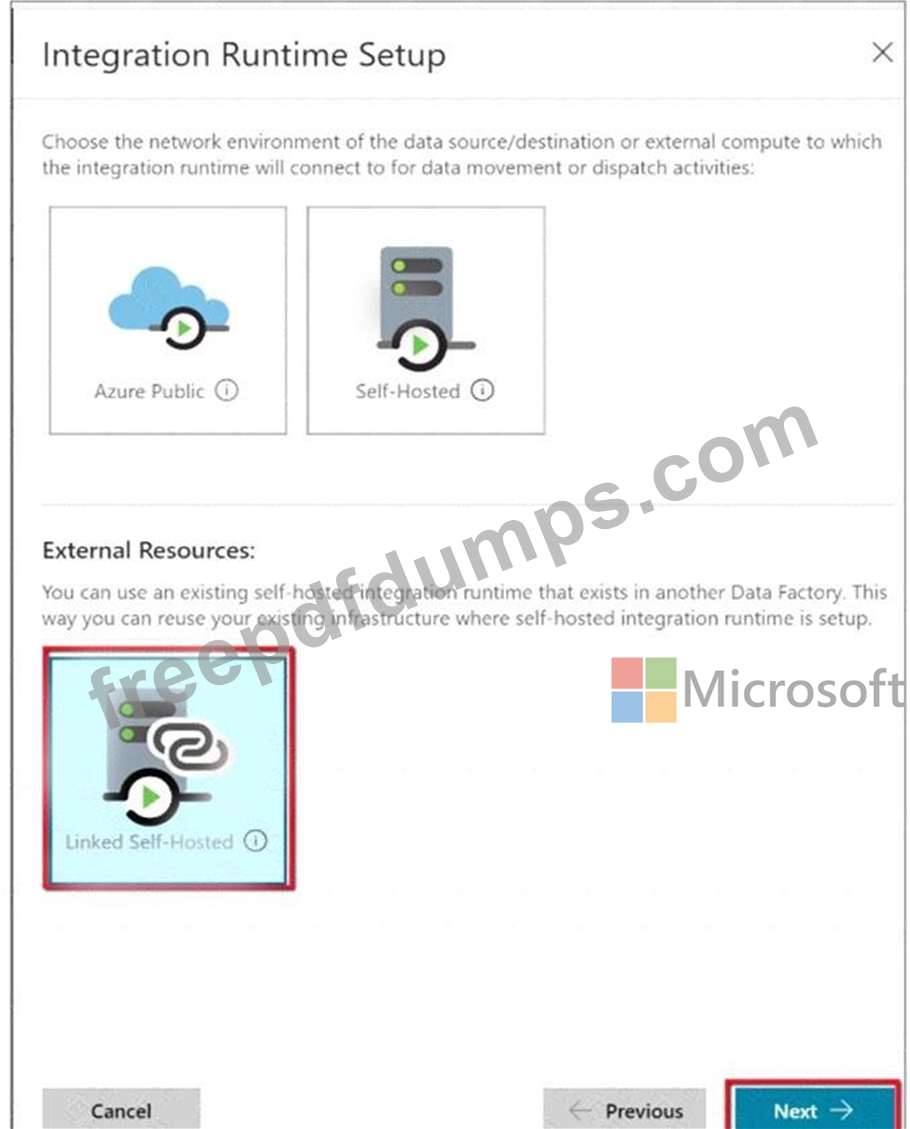

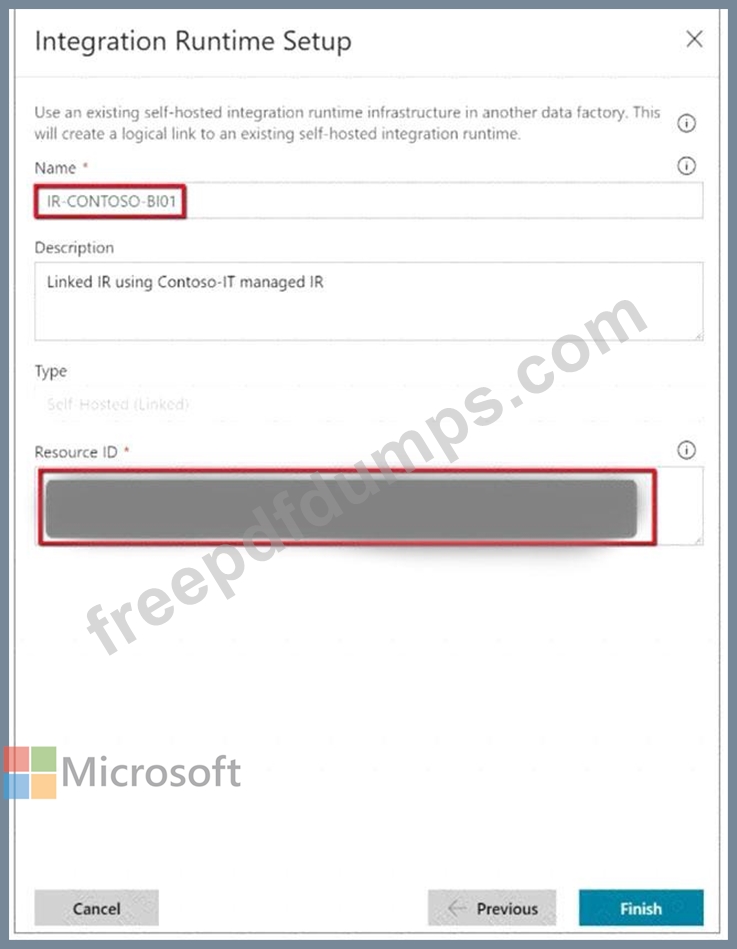

3. In the data factory to which the permissions were granted, create a new self-hosted IR (linked) and enter the resource ID.


References:
https://docs.microsoft.com/en-us/azure/data-factory/quickstart-create-data-factory-portal
https://docs.microsoft.com/en-us/azure/data-factory/create-self-hosted-integration-runtime#sharing-the-self-hoste

Explanation

Box 1: Azure Active Directory user
Scenario:
Access to polling data must set on a per-active directory user basis
Box 2: DataBase Scoped Credential
SQL Server uses a database scoped credential to access non-public Azure blob storage or Kerberos-secured Hadoop clusters with PolyBase.
PolyBase cannot authenticate by using Azure AD authentication.
References:
https://docs.microsoft.com/en-us/sql/t-sql/statements/create-database-scoped-credential-transact-sql

Explanation

Tier 7 and 8 data access is constrained to single endpoints managed by partners for access Step 1: Set the Allow Azure Services to Access Server setting to Disabled Set Allow access to Azure services to OFF for the most secure configuration.
By default, access through the SQL Database firewall is enabled for all Azure services, under Allow access to Azure services. Choose OFF to disable access for all Azure services.
Note: The firewall pane has an ON/OFF button that is labeled Allow access to Azure services. The ON setting allows communications from all Azure IP addresses and all Azure subnets. These Azure IPs or subnets might not be owned by you. This ON setting is probably more open than you want your SQL Database to be. The virtual network rule feature offers much finer granular control.
Step 2: In the Azure portal, create a server firewall rule
Set up SQL Database server firewall rules
Server-level IP firewall rules apply to all databases within the same SQL Database server.
To set up a server-level firewall rule:
* In Azure portal, select SQL databases from the left-hand menu, and select your database on the SQL databases page.
* On the Overview page, select Set server firewall. The Firewall settings page for the database server opens.
Step 3: Connect to the database and use Transact-SQL to create a database firewall rule Database-level firewall rules can only be configured using Transact-SQL (T-SQL) statements, and only after you've configured a server-level firewall rule.
To setup a database-level firewall rule:
* Connect to the database, for example using SQL Server Management Studio.
* In Object Explorer, right-click the database and select New Query.
* In the query window, add this statement and modify the IP address to your public IP address:
* EXECUTE sp_set_database_firewall_rule N'Example DB Rule','0.0.0.4','0.0.0.4';
* On the toolbar, select Execute to create the firewall rule.
References:
https://docs.microsoft.com/en-us/azure/sql-database/sql-database-security-tutorial

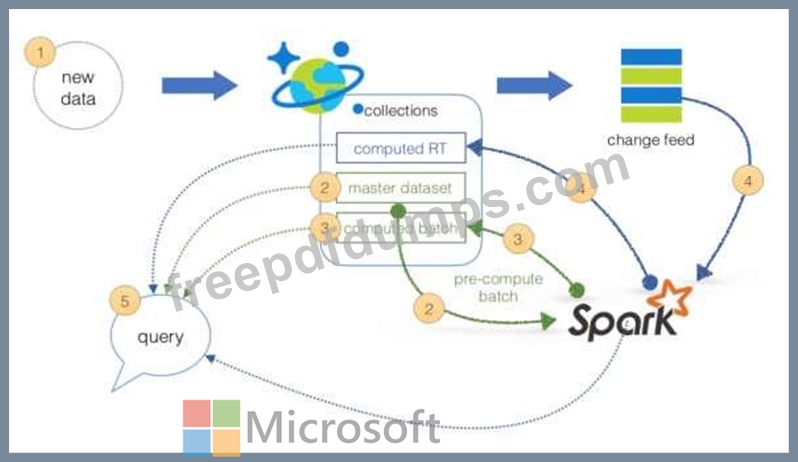

Lambda Architecture with Azure:
Azure offers you a combination of following technologies to accelerate real-time big data analytics:
1. Azure Cosmos DB, a globally distributed and multi-model database service.
2. Apache Spark for Azure HDInsight, a processing framework that runs large-scale data analytics applications.
3. Azure Cosmos DB change feed, which streams new data to the batch layer for HDInsight to process.
4. The Spark to Azure Cosmos DB Connector

Note: Lambda architecture is a data-processing architecture designed to handle massive quantities of data by taking advantage of both batch processing and stream processing methods, and minimizing the latency involved in querying big data.
References:
https://sqlwithmanoj.com/2018/02/16/what-is-lambda-architecture-and-what-azure-offers-with-its-new-cosmos- db/
