In a mesh topology, every node is directly connected to every other node. This provides high redundancy and reliability, as there are multiple paths for data to travel between nodes. This topology is often used in networks where high availability is crucial.
Reference: CompTIA Network+ study materials.

See the answer and solution below
Explanation:

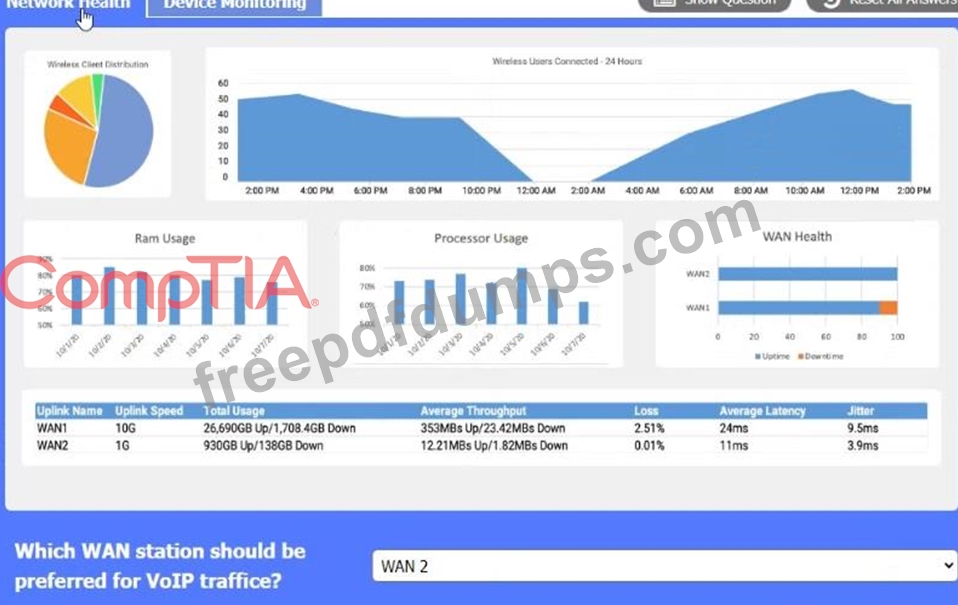

Network Health:
WAN 2 appears to have a lower average latency and loss percentage, which would make it the preferred WAN station for VoIP traffic. VoIP traffic requires low latency and packet loss to ensure good voice quality and reliability. WAN 1 seems to have higher RAM and processor usage, which could also affect the performance of VoIP traffic.
Here's the summary of the key metrics for WAN 1 and WAN 2 from the image provided:
WAN 1:
Uplink Speed: 10G
Total Usage: 26.969GB Up / 1.748GB Down
Average Throughput: 353MBps Up / 23.42MBps Down
Loss: 2.51%
Average Latency: 24ms
Jitter: 9.5ms
WAN 2:
Uplink Speed: 1G
Total Usage: 930GB Up / 138GB Down
Average Throughput: 12.21MBps Up / 1.82MBps Down
Loss: 0.01%
Average Latency: 11ms
Jitter: 3.9ms
For VoIP traffic, low latency and jitter are particularly important to ensure voice quality. While WAN 1 has higher bandwidth and throughput, it also has higher latency and jitter compared to WAN 2. However, WAN 2 has much lower loss, lower latency, and lower jitter, which are more favorable for VoIP traffic that is sensitive to delays and variation in packet arrival times.
Given this information, WAN 2 would generally be preferred for VoIP traffic due to its lower latency, lower jitter, and significantly lower loss percentage, despite its lower bandwidth compared to WAN 1. The high bandwidth of WAN 1 may be more suitable for other types of traffic that are less sensitive to latency and jitter, such as bulk data transfers.

Device Monitoring:
the device that is experiencing connectivity issues is the APP Server or Router 1, which has a status of Down. This means that the server is not responding to network requests or sending any dat a. You may want to check the physical connection, power supply, and configuration of the APP Server to troubleshoot the problem.

Explanation: A cable tester is a tool that can help identify issues with the physical cabling, such as breaks or improper terminations, which may prevent the access point from reaching the internet.

* Definition of MAC Flooding:
* MAC flooding is an attack where a malicious actor sends numerous fake MAC addresses to a switch, overwhelming its CAM table. The CAM table stores MAC addresses and their associated ports for efficient traffic forwarding.
* Impact of MAC Flooding:
* CAM Table Overflow: When the CAM table is full, the switch cannot learn new MAC addresses and is forced to broadcast traffic to all ports, leading to a degraded network performance and
* potential data interception.
* Switch Behavior: The switch operates in a fail-open mode, treating the network as a hub, which can be exploited for eavesdropping on traffic.
* Comparison with Other Attacks:
* ARP Spoofing: Involves sending false ARP (Address Resolution Protocol) messages to associate the attacker's MAC address with the IP address of another device.
* Evil Twin: Involves creating a rogue wireless access point that mimics a legitimate one to intercept data.
* DNS Poisoning: Involves corrupting the DNS cache with false information to redirect traffic to malicious sites.
* Preventive Measures:
* Port Security: Configure port security on switches to limit the number of MAC addresses per port, preventing CAM table overflow.
* Network Segmentation: Use VLANs to segment network traffic and limit the impact of such attacks.
References:
* CompTIA Network+ study materials on network security threats and mitigation techniques.
