* Importance of Proper Termination:
* Cat 8 cabling requires precise termination practices to ensure signal integrity and reduce interference. One common requirement is to wrap the end connections in copper tape to maintain shielding and reduce electromagnetic interference (EMI).
* Interference Troubleshooting:
* Interference in high-frequency cables like Cat 8 can be caused by improper shielding or grounding. Checking the end connections for proper wrapping in copper tape is a crucial step.
* Why Other Options are Less Likely:
* Passthrough modular crimping plugs: Not specifically related to interference issues and are typically used for ease of cable assembly.
* Connecting RX/TX wires to different pins: Would likely result in no connection or incorrect data transmission rather than interference.
* Running a speed test on a device that can only achieve 100Mbps speeds: This would not diagnose interference and would not provide relevant information for Cat 8 cabling rated for
* higher speeds.
* Corrective Actions:
* Verify that all end connections are properly wrapped with copper tape before termination.
* Ensure that the shielding is continuous and properly grounded throughout the installation.
* Retest the cabling for interference after making corrections.
References:
* CompTIA Network+ study materials and structured cabling installation guides.

See the solutio nconfiguration below in Explanation
Explanation:

* Understanding 2.4GHz Interference:
* The 2.4GHz frequency range is commonly used by many devices, including Wi-Fi, Bluetooth, and various industrial equipment. This can lead to interference and degraded performance.
* Mitigation Strategies:
* 5GHz Frequency:
* The 5GHz frequency band offers more channels and less interference compared to the
2.4GHz band. Devices operating on 5GHz are less likely to encounter interference from other devices, including industrial equipment.
* Non-overlapping Channels:
* In the 2.4GHz band, using non-overlapping channels (such as channels 1, 6, and 11) can help reduce interference. Non-overlapping channels do not interfere with each other, providing clearer communication paths for Wi-Fi signals.
* Why Other Options are Less Effective:
* Mesh Network:While useful for extending network coverage, a mesh network does not inherently address interference issues.
* Omnidirectional Antenna:This type of antenna broadcasts signals in all directions but does not mitigate interference.
* Captive Portal:A web page that users must view and interact with before accessing a network, unrelated to frequency interference.
* Ad Hoc Network:A decentralized wireless network that does not address interference issues directly.
* Implementation:
* Switch Wi-Fi devices to the 5GHz band if supported by the network infrastructure and client devices.
* Configure Wi-Fi access points to use non-overlapping channels within the 2.4GHz band to minimize interference.
References:
* CompTIA Network+ study materials on wireless networking and interference mitigation.

See the step by step complete solution below.
Explanation:
* Devices in both buildings should be able to access the Internet.
* Security insists that all Internet traffic be inspected before entering the network.
* Desktops should not see traffic destined for other devices.

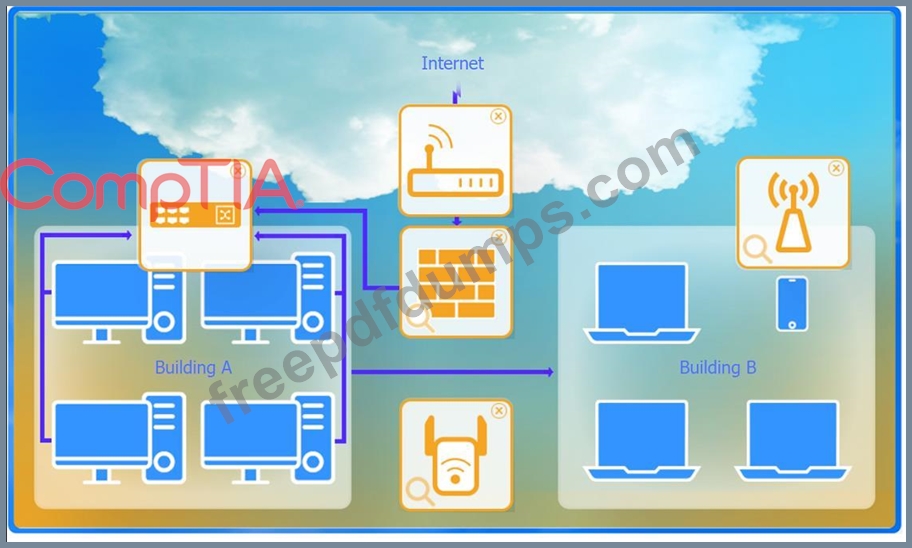

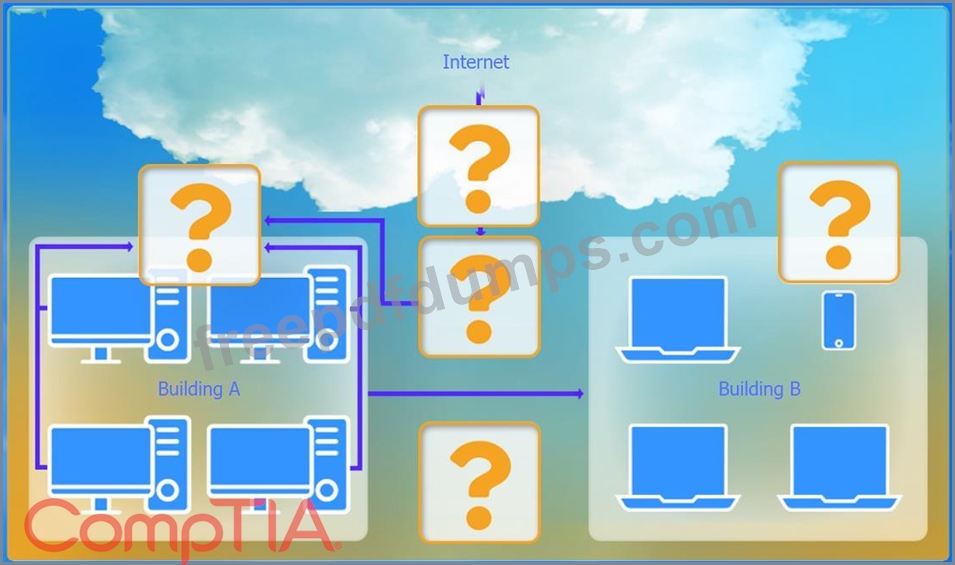

Here is the corrected layout with explanation:
* Building A:
* Switch: Correctly placed to connect all desktops.
* Firewall: Correctly placed to inspect all incoming and outgoing traffic.
* Building B:
* Switch: Not needed. Instead, place a Wireless Access Point (WAP) to provide wireless connectivity for laptops and mobile devices.
* Between Buildings:
* Wireless Range Extender: Correctly placed to provide connectivity between the buildings wirelessly.
* Connection to the Internet:
* Router: Correctly placed to connect to the Internet and route traffic between the buildings and the Internet.
* Firewall: The firewall should be placed between the router and the internal network to inspect all traffic before it enters the network.
* Top-left (Building A): Switch
* Bottom-left (Building A): Firewall (inspect traffic before it enters the network)
* Top-middle (Internet connection): Router
* Bottom-middle (between buildings): Wireless Range Extender
* Top-right (Building B): Wireless Access Point (WAP)
Corrected Setup:In this corrected setup, the WAP in Building B will connect wirelessly to the Wireless Range Extender, which is connected to the Router. The Router is connected to the Firewall to ensure all traffic is inspected before it enters the network.
* SSID: CORP
* Security Settings: WPA2 or WPA2 - Enterprise
* Key or Passphrase: [Enter a strong passphrase]
* Mode: [Set based on your network plan]
* Channel: [Set based on your network plan]
* Speed: Auto
* Duplex: Auto
Configuration for Wireless Range Extender:With these settings, both buildings will have secure access to the Internet, and all traffic will be inspected by the firewall before entering the network. Desktops and other devices will not see traffic intended for others, maintaining the required security and privacy.

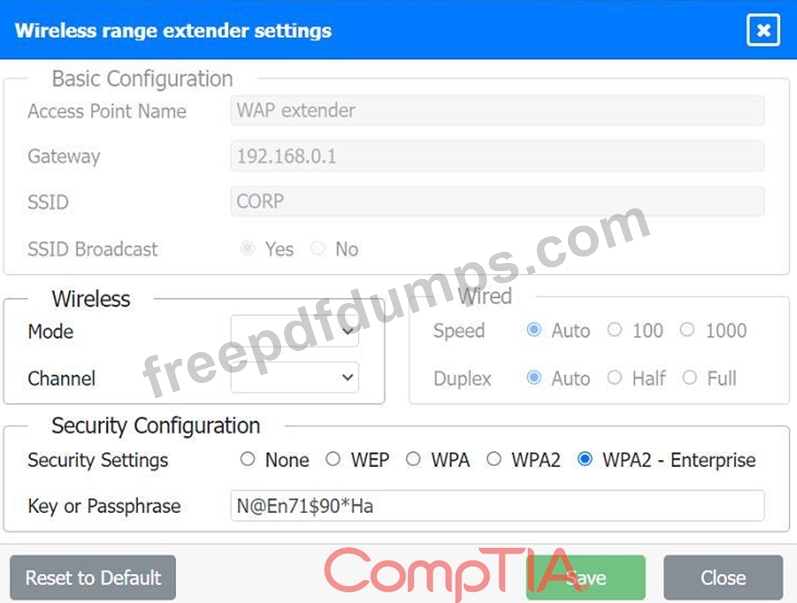

To configure the wireless range extender for security, follow these steps:
* SSID (Service Set Identifier):
* Ensure the SSID is set to "CORP" as shown in the exhibit.
* Security Settings:
* WPA2 or WPA2 - Enterprise: Choose one of these options for stronger security.
WPA2-Enterprise provides more robust security with centralized authentication, which is ideal for a corporate environment.
* Key or Passphrase:
* If you select WPA2, enter a strong passphrase in the "Key or Passphrase" field.
* If you select WPA2 - Enterprise, you will need to configure additional settings for authentication servers, such as RADIUS, which is not shown in the exhibit.
* Wireless Mode and Channel:
* Set the appropriate mode and channel based on your network design and the environment to avoid interference. These settings are not specified in the exhibit, so set them according to your network plan.
* Wired Speed and Duplex:
* Set the speed to "Auto" unless you have specific requirements for 100 or 1000 Mbps.
* Set the duplex to "Auto" unless you need to specify half or full duplex based on your network equipment.
* Save Configuration:
* After making the necessary changes, click the "Save" button to apply the settings.
Here is how the configuration should look after adjustments:
* SSID: CORP
* Security Settings: WPA2 or WPA2 - Enterprise
* Key or Passphrase: [Enter a strong passphrase]
* Mode: [Set based on your network plan]
* Channel: [Set based on your network plan]
* Speed: Auto
* Duplex: Auto
Once these settings are configured, your wireless range extender will provide secure connectivity for devices in both buildings.

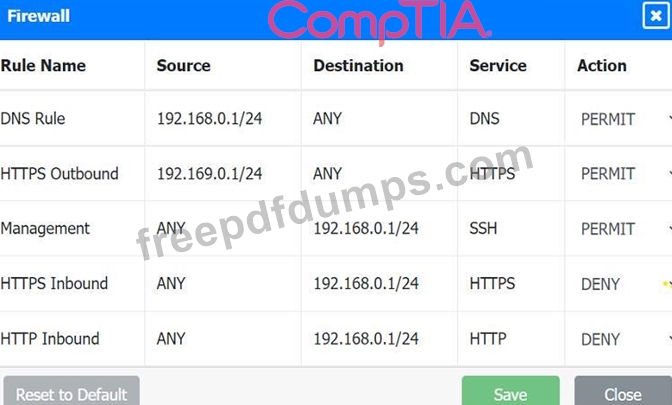

Firewall setting to to ensure complete compliance with the requirements and best security practices, consider the following adjustments and additions:
* DNS Rule: This rule allows DNS traffic from the internal network to any destination, which is fine.
* HTTPS Outbound: This rule allows HTTPS traffic from the internal network (assuming
192.169.0.1/24 is a typo and should be 192.168.0.1/24) to any destination, which is also good for secure
* web browsing.
* Management: This rule allows SSH access to the firewall for management purposes, which is necessary for administrative tasks.
* HTTPS Inbound: This rule denies inbound HTTPS traffic to the internal network, which is good unless you have a web server that needs to be accessible from the internet.
* HTTP Inbound: This rule denies inbound HTTP traffic to the internal network, which is correct for security purposes.
* Permit General Outbound Traffic: Allow general outbound traffic for web access, email, etc.
* Block All Other Traffic: Ensure that all other traffic is blocked to prevent unauthorized access.
* Correct the Network Typo:
* Ensure that the subnet 192.169.0.1/24 is corrected to 192.168.0.1/24.
* Permit General Outbound Traffic:
* Rule Name: General Outbound
* Source: 192.168.0.1/24
* Destination: ANY
* Service: ANY
* Action: PERMIT
* Deny All Other Traffic:
* Rule Name: Block All
* Source: ANY
* Destination: ANY
* Service: ANY
* Action: DENY
Suggested Additional Settings:Firewall Configuration Adjustments:Here is how your updated firewall settings should look:
Rule Name
Source
Destination
Service
Action
DNS Rule
192.168.0.1/24
ANY
DNS
PERMIT
HTTPS Outbound
192.168.0.1/24
ANY
HTTPS
PERMIT
Management
ANY
192.168.0.1/24
SSH
PERMIT
HTTPS Inbound
ANY
192.168.0.1/24
HTTPS
DENY
HTTP Inbound
ANY
192.168.0.1/24
HTTP
DENY
General Outbound
192.168.0.1/24
ANY
ANY
PERMIT
Block All
ANY
ANY
ANY
DENY
These settings ensure that:
* Internal devices can access DNS and HTTPS services externally.
* Management access via SSH is permitted.
* Inbound HTTP and HTTPS traffic is denied unless otherwise specified.
* General outbound traffic is allowed.
* All other traffic is blocked by default, ensuring a secure environment.
Make sure to save the settings after making these adjustments.

* Understanding End-of-Support:
* End-of-Support Status: When a vendor declares a device as end-of-support, it means the device will no longer receive updates, patches, or technical support. This poses a security risk as new vulnerabilities will not be addressed.
* Risks of Keeping an End-of-Support Device:
* Security Vulnerabilities: Without updates, the switch becomes susceptible to new security threats.
* Compliance Issues: Many regulatory frameworks require that critical infrastructure be maintained with supported and secure hardware.
* Best Next Step - Replacement:
* Decommission and Replace: The most secure approach is to replace the end-of-support switch with a new, supported model. This ensures the infrastructure remains secure and compliant with current standards.
* Planning and Execution: Plan for the replacement by evaluating the network's needs, selecting a suitable replacement switch, and scheduling downtime for the hardware swap.
* Comparison with Other Options:
* Apply the Latest Patches: While helpful, this does not address future vulnerabilities since no further patches will be provided.
* Ensure the Current Firmware Has No Issues: This is only a temporary measure and does not mitigate future risks.
* Isolate the Switch from the Network: Isolating the switch may disrupt network operations and is not a viable long-term solution.
References:
* CompTIA Network+ study materials on network maintenance and security best practices.
