"FSSO is a software agent that enables FortiGate to identify network users for security policies or for VPN access, without asking for their username and password. When a user logs in to a directory service, the FSSO agent sends FortiGate the username, the IP address, and the list of groups that the user belongs to. FortiGate uses this information to maintain a local database of usernames, IP addresses, and group mappings."
"To display the list of FSSO users that are currently logged in, use the CLI command diagnose debug authd fsso list. For each user, the user name, user group, IP address, and the name of the workstation from which they logged in shows."
"You can monitor users who authenticate through your firewall policies using the Dashboard > Assets & Identities > Firewall Users page. It displays the user, user group, duration, IP address, traffic volume, and authentication method." Technical Deep Dive:
The first thing to verify is whether FortiGate has actually learned the user correctly in its FSSO active users table, especially the user-to-IP mapping. FSSO enforcement is identity-based, but the real-time match on live traffic still depends on FortiGate associating the traffic's source IP with the authenticated Windows user. If that mapping is missing, stale, or tied to the wrong IP because of DHCP changes, DNS update lag, or collector-agent timing, the firewall policy match can fail even though the user successfully logged in to Windows.
That is why C is the best first check.
A may be the next thing to verify if the user is present but still denied, but first you must confirm the user is even present in the FSSO table with the correct IP.
B is unrelated to the initial FSSO identity-mapping problem.
D is less likely because the Windows logon already succeeded.
Useful checks:
diagnose debug authd fsso list
diagnose debug authd fsso server-status
execute fsso refresh
These commands confirm whether FortiGate has the user, group, and IP mapping needed for policy matching.

According to the FortiOS 7.6 Study Guide and technical documentation regarding High Availability (HA), the FortiGate Clustering Protocol (FGCP) uses a specific set of rules to elect the primary unit in a cluster. By default, the election order follows: Connected Monitored Ports > HA Uptime > Priority > Serial Number.
However, when the HA override setting is enabled, the election logic is modified to prioritize the administrator-defined priority value over the uptime of the cluster members. In this specific configuration, the election process follows this sequence:
* Connected monitored ports: The unit with the most functioning monitored interfaces is preferred.
* Priority: The unit with the highest manually configured priority value (e.g., 255) is selected next.
* HA uptime: If monitored ports and priority are equal, the unit that has been up in the HA cluster the longest is chosen.
* FortiGate serial number: As a final tie-breaker, the unit with the higher serial number is elected.1 Statement A is correct because it reflects the shift where Priority is evaluated immediately after monitored ports, overriding the standard uptime advantage. Statements B and D are incorrect because the FGCP uses HA uptime, not system uptime, for its calculations.

In FortiOS 7.6, SD-WAN steering decisions are recorded in traffic logs only when traffic matches an explicit SD-WAN rule (SD-WAN service rule). When no configured SD-WAN rule matches a session, FortiGate uses the implicit (default) SD-WAN rule/behavior to select a member (often resulting in load-balancing or default selection based on the configured SD-WAN algorithm).
In the exhibit, traffic is permitted by firewall policy ID 1, and the Destination Interface alternates between port1 and port2, but SD-WAN Rule Name remains empty. This is consistent with the sessions being forwarded by the implicit SD-WAN rule, which does not populate a named rule in the log columns.
Why the other options are not correct:
A: SD-WAN rule name logging is not a "delayed display" behavior requiring refresh; it is populated per-session when an explicit rule matches.
B: Application Control is not required for SD-WAN rule name to appear. Rule name logging depends on SD-WAN rule match, not on whether Application Control is enabled.
C: Feature visibility affects GUI display options, but the exhibit already shows the SD-WAN columns enabled; the issue is that no explicit SD-WAN rule is being hit.

"By default, you can select only a single interface as the incoming interface and a single interface as the outgoing interface. This is because the option to select multiple interfaces, or any interface in a firewall policy, is disabled on the GUI. However, you can enable the Multiple Interface Policies option on the Feature Visibility page to disable the single interface restriction."
"You can also specify multiple interfaces, or use the any option, if you configure a firewall policy on the CLI, regardless of the default GUI setting." Technical Deep Dive:
The correct answer is D.

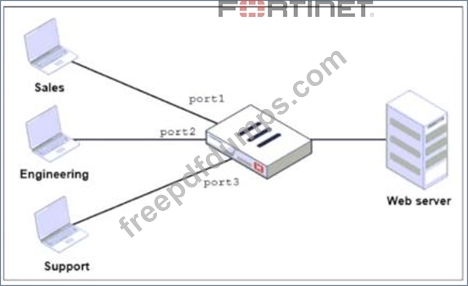

The policies are identical except for the incoming interface: one is for Sales and one is for Engineering. FortiGate GUI policy creation normally restricts you to one incoming interface per policy. To consolidate both into a single GUI policy, the administrator must enable Multiple Interface Policies so both port1 and port2 can be selected in the same rule.
Why the others are wrong:
A is not enough, because policy matching also includes the incoming interface, not just the source subnets.
B changes the network design and is unnecessary.
C would work too broadly by matching traffic from any interface, which is not the intended controlled consolidation.
A matching CLI-style concept would be:
config firewall policy
edit <id>
set srcintf "port1" "port2"
set dstintf "<server-interface>"
set srcaddr "Sales_Subnet" "Engineering_Subnet"
set dstaddr "<web-server>"
set service "HTTP" "HTTPS"
set action accept
next
end
That preserves a single policy while still being specific about which interfaces are allowed.
