In a hierarchical network model, the role of a device functioning simultaneously as both the distribution and core is most accurately described as " FortiGate managing FortiSwitch (B). " In this setup, FortiGate acts as the central unit managing multiple FortiSwitch units, thereby functioning both as a distribution layer- handling traffic between network segments-and as a core layer-managing traffic within the network on a broader scale. This setup is typical in medium-sized networks where a single device is capable enough to handle both roles effectively.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, Remote Switched Port Analyzer (RSPAN) is a method used to monitor traffic across a network of switches by carrying mirrored traffic over a specific RSPAN VLAN. Because RSPAN floods mirrored traffic to all ports that are members of that specific VLAN across the intermediate switches (Switch B, etc.) until it reaches the destination port, it is critical to manage how that traffic is isolated.
The documentation explicitly states that the best practice is touse a dedicated VLAN assigned only to monitoring devices (Option B). When a VLAN is designated for RSPAN, the switch disables MAC address learning on that VLAN to ensure that the mirrored traffic-which contains the source and destination MAC addresses of the original conversation-does not interfere with the switch ' s normal MAC address table entries for those devices.2 Using a VLAN that already carries regular data traffic (Option A) would result in a massive amount of duplicate traffic being flooded to normal production hosts, leading to network congestion and potential security risks. Similarly, using a dynamic VLAN that includes all ports (Option C) would cause the mirrored traffic to be broadcast to every port in the switch fabric, significantly degrading performance. Finally, using the RSPAN VLAN as a native VLAN (Option D) is not recommended because native VLANs typically handle untagged traffic, whereas RSPAN requires consistent tagging to ensure the mirrored packets stay within the isolated monitoring domain across trunk links. Therefore, creating a unique, dedicated VLAN that is used exclusively for the transport of mirrored traffic is the architectural standard for FortiSwitch RSPAN deployments.

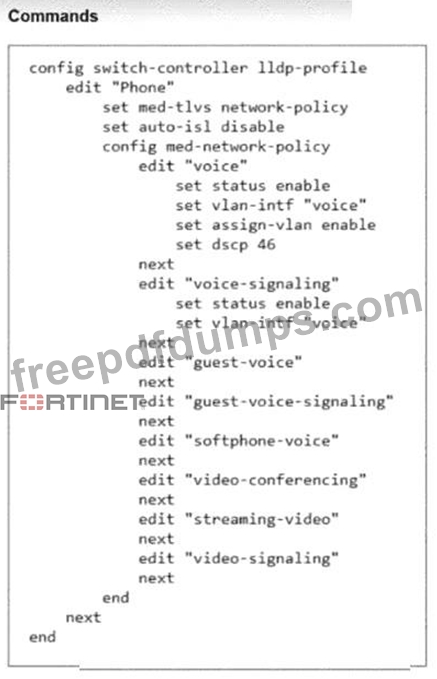

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, Link Layer Discovery Protocol-Media Endpoint Discovery (LLDP-MED) is an enhancement to standard LLDP that provides advanced discovery and configuration for endpoints li1ke IP phones. While the current configuration in the exhibit correctly handlesNetwork Policy TLVsto advertise QoS2and VLAN settings to the phones, it is missing the specific component required for data collection.34 To coll5ect detail6ed information such as themanufacturer, software version, hardware version, and serial or asset numbers, you mustEnable LLDP-MED inventory management TLVs (Option C). The documentation specifies that when the inventory-management TLV is active, the switch can retrieve these extensive device characteristics from the connected Media Endpoints. This information is then visible to the administrator through the FortiGate or FortiSwitch monitoring tools, providing a complete hardware inventory of the voice network.
Regarding the other options:Option Ais unnecessary because a single LLDP profile can support multiple TLV types simultaneously by adding them to the med-tlvs string.Option Bis already partially implemented in the exhibit ' s network policy but does not contribute to device detection or data collection.Option Dis used for automatic trunking between FortiSwitches and is unrelated to endpoint device information. Therefore, the addition of the inventory-management TLV is the specific requirement to fulfill the goal of collecting detailed IP phone data.

From the exhibit and the details given about the routes not installed in the FIB:
* These two routes have a higher administrative distance value available to the destination networks (Option A): Administrative distance is a measure used by routers to select the best path when there are two or more different routes to the same destination from two different routing protocols. A higher administrative distance means that the route is considered less trustworthy, thus not selected for the FIB unless the more preferred routes fail.
* These two routes will become primary, if the best routes are removed (Option B): In routing, if the currently installed routes (which are considered the best due to reasons like lower administrative distance) are removed or become unavailable, the next best routes based on administrative distance will be used. This behavior ensures redundancy and maintains network connectivity in diverse scenarios.
References:
This approach is aligned with standard routing protocol behavior as documented in networking protocols and Fortinet's routing mechanisms which prioritize routes based on administrative distance and other metrics to maintain efficient and reliable network routing.

* All hosts behind an authenticated port are allowed access after a successful authentication (A): Once a device on a port successfully authenticates using 802.1X, all other devices connected behind that port also gain network access. This is typical in scenarios where a switch is behind an authenticated port and not each device individually authenticates.
* All devices connecting to FortiSwitch must support 802.1X authentication (D): For a network secured with 802.1X, all devices attempting to connect through the FortiSwitch must support and participate in
802.1X authentication to gain access. This ensures that all devices on the network are authenticated before they are allowed to communicate on the network.
