GB0-371-ENU Exam Question 101

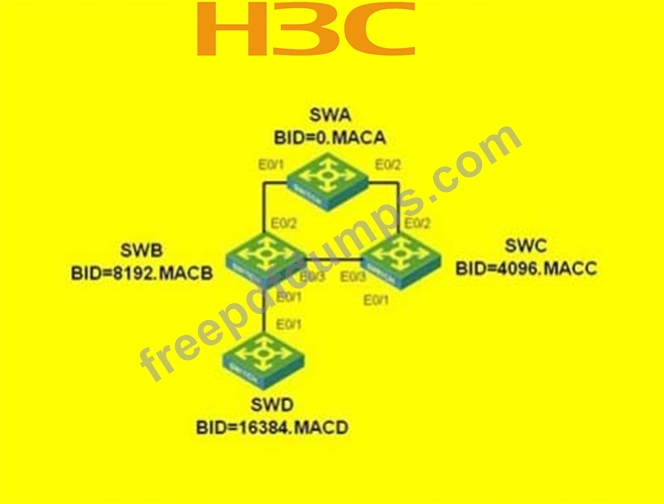

As shown in the title picture, SWA, SWB, SWC and SWD enable STP. SWA, SWB and SWC form a loop. After the topology is stable, connect SWD and SWB. Assuming the same link overhead, the process of topology change of STP is The following statements are correct

A.SWD will send TCN BPDUs from port E0/1

B.If the link between SWB and SWC is interrupted, both SWB and SWC will send TCN BPDUs from port E0/2

C.If the link between SWC and SWA is interrupted, SWC will send out TCN BPDU from port E0/3

D.SWB will send TCN BPDU from port E0/2

GB0-371-ENU Exam Question 102

A loop in the LAN may cause it.

A.Port duplex mode changes

B.MAC address learning error

C.Port rate changes

D.Broadcast storm

GB0-371-ENU Exam Question 103

As shown in the network, the switches all run RSTP. Initially, SWA, SWB and SWC are interconnected. When the topology is stable, connect SWB and SWD, then the following statements are correct.

A.After SWA receives the BPDU with TC set, it will clear the MAC address table and send RSTBPDU with TC set from E0/2

B.After SWC receives the BPDU with TC set, it will clear the MAC address learned by port E0/1 and send RST BPDU with TC set from this port

C.SWB will clear the MAC addresses learned by ports E0/1 and E0/2 and send RST BPDUs with TC set from these two ports

D.SWB will send RST BPDU with TC set within twice the HelloTime

GB0-371-ENU Exam Question 104

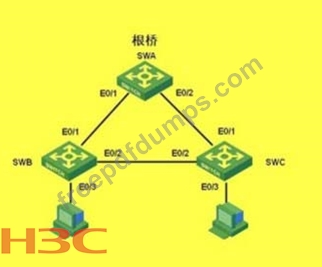

As shown in the figure, each switch enables RSTP. Assuming that each link has the same cost value, the following statement is correct

A.SWB port E0/1 is an alternate port

B.Network calculation convergence does not need to wait twice the ForwardDelay time

C.If RSTP is cancelled on SWB, SWC port E0/1 will become the root port

D.If both SWB and SWC RSTP are cancelled, the SWA port E0/2 will become the Backup port

GB0-371-ENU Exam Question 105

Regarding BPDU protection, the following statements are correct

A.After configuring BPDU protection, the edge port will be closed when receiving BPDUs

B.Edge ports that are not configured with BPDU protection will be converted to non-edge ports upon receiving BPDUs

C.BPDU protection is configured in the protected port view

D.BPDU protection is configured in the system view
