An architect plans where to deploy new Aruba 320 Series APs at a customer site. The architect plans for the APs to be installed on the ceiling where power is inaccessible. The Ethernet cable run to these locations is CAT6, and the customer wants to support at least 1 GbE connectivity. The architect plans to connect each AP with one Ethernet port to a switch in a nearby wiring closet.
Which feature does the switch need to support for this deployment?

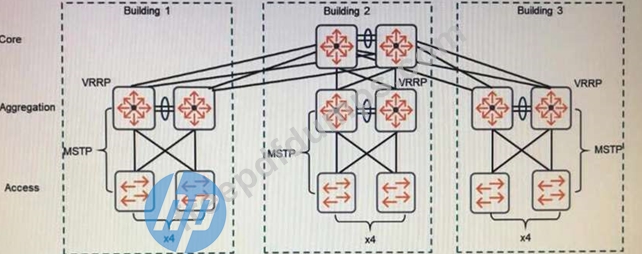

Refer to the exhibit.

A customer wants to replace the core and aggregation layer of an existing network. Currently the network routes between the aggregation layer and core, and uses the technologies shown in the exhibit.
The customer now wants to route at the core, instead of the aggregation layer, and extend some of the same VLANs in different buildings. However, the customer cannot eliminate the aggregation layer at this point. What should the architect recommend?

Read this scenario thoroughly, and then answer each that displays on the right side of the screen.
An architect proposes these products for a customer who wants a wireless and wired upgrade:
1. Aruba 2930M switches at the access layer
2. Aruba 5406R switches at the core
3. Aruba AP-325s
4. Aruba 7205 Mobility Controllers (MCs), deployed in a cluster
5. Aruba Mobility Master (MM)
6. Aruba ClearPass Cx000V
7. Aruba AirWare
The architect also needs to propose a security plan for the solution. The customer has 900 employees and up to 30 guests a day. The customer wants to protect the internal perimeter of the network with authentication and simple access controls. The customer is most concerned about wireless security, but also wants to ensure that only trusted users connect on the wire. However, the customer also wants all wired traffic to be forwarded locally on access layer switches. The customer already has a third-party firewall that protects the data center.
The customer wants to use certificates to authenticate user devices, but is concerned about the complexity of deploying the solution. The architect should recommend a way to simplify. For the most part users connect company-issued laptops to the network. However, users can bring their own devices and connect them to the network. The customer does not know how many devices each user will connect, but expects about two or three per-user. DHCP logs indicate that the network supports a maximum of 2800 devices.
Refer to the provided scenario. Based on the plan for wired authentication, what is a correct plan for wired user VLANs?

Refer to the exhibit.

The customer needs to expand its wired and wireless network to a new building, Building 2, which is near the existing building, Building 1. The exhibit shows the logical plan that the architect has created so far. The aggregation layer switches in the new building should provide the default gateway services for the VLANs in the new building and route traffic to the core. The existing Aruba Mobility Controllers (MCs) will control the new APs.
What should be the VLAN assignment for Link 1, indicated in the exhibit?

What is a key criteria that an architect should use to choose between an Aruba 7000 Series or 7200 Series
Mobility Controller (MC)?
