The question asks how suspected rogue APs are classified using the default classification method for the
"Suspected AP On-Prem" rule in HPE Aruba Networking Central.
* Analysis of Options:
* Option A:Correct. Suspected rogues are classified with a signal level of -65 dBm (indicating proximity) and WLAN classification of "On-Prem" (indicating they are on the premises).
* Option B:Incorrect. A signal level of -55 dBm is too strong, and "Interfering" is not specific to on-premises rogues.
* Option C:Incorrect. A signal level of -50 dBm is even stronger, and "Interfering" is incorrect.
* Option D:Incorrect. "On Wire" classification applies to wired rogue detection, not wireless on- premises APs.
* Why Option A is Correct:In HPE Aruba Networking Central, the "Suspected AP On-Prem" rule identifies rogue APs based on their signal strength and location. A signal level of -65 dBm indicates the AP is close enough to be on the premises, and the "On-Prem" classification confirms it's detected within the managed network's environment. This default rule helps identify potential security threats by flagging unauthorized APs with moderate to strong signals, distinguishing them from interfering or distant APs, as per Aruba's wireless security framework.
* Relevance to Certification Objectives:
* WLAN (9%):Designing and troubleshooting RF attributes and wireless security functions.
* Security (10%):Troubleshooting and identifying rogue APs in customer networks.
* Troubleshooting (10%):Analyzing wireless issues using Aruba Central tools.
References:
HPE Aruba Networking Central User Guide: Rogue AP Detection and Classification.
HPE7-A06Study Guide: Covers wireless security and rogue AP management.
HPE Aruba Networking Technical Documentation: Wireless Security and Rogue Detection Best Practices.

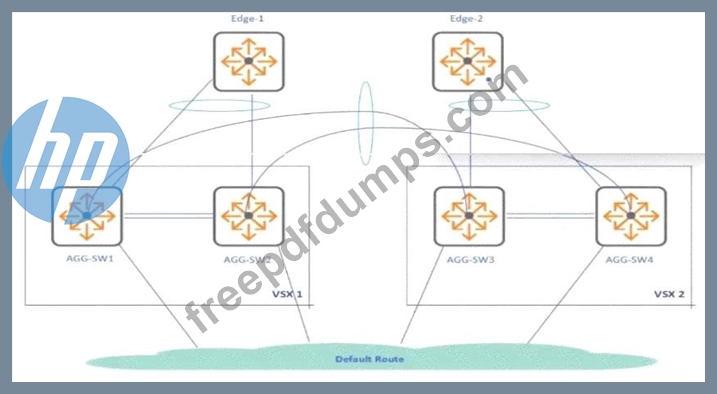

The scenario describes two separate VSX clusters interconnected via MC-LAG, where both clusters are configured to use theexact samevirtual IP address and virtual MAC address for their respective Active Gateway SVIs.
* Active Gateway Scope & Conflict:Active Gateway provides a highly available default gatewaywithina single VSX cluster (L2 domain). The vIP/vMAC combination should be unique within its L2 broadcast domain.
* Interconnecting Clusters with Same vIP/vMAC:When two VSX clusters using the identical Active Gateway vIP/vMAC are interconnected at Layer 2 (even via MC-LAG), this creates a situation where the same active L2 (vMAC) and L3 (vIP) address exists in multiple places within the extended broadcast domain.
* Consequences:This leads to MAC address conflicts and L3 ambiguity. ARP resolution becomes unreliable, potentially causing ARP tables to flap on connected devices. Traffic forwarding becomes unpredictable, as packets destined for the vIP/vMAC might be delivered to the "wrong" cluster. This unstable and unpredictable state is sometimes referred to as an asymmetric or "async" setup.
* Analysis of Options:
* A: ISL traffic might change, but it's a symptom, not the root problem.
* B: Multiple ARP replies would occur, contributing to the confusion.
* C: The configuration results in an "async setup," accurately describing the unstable state caused by duplicate active L2/L3 addresses across the interconnected L2 domain.
* D: Load-balancing happens within a cluster; this setup causes conflict, not predictable load balancing across clusters.
* Conclusion:Reusing the same Active Gateway vIP and vMAC across interconnected VSX clusters is not a valid design and leads to an unstable, asymmetric ("async") environment due to address duplication within the extended L2 domain. Option C best describes this problematic outcome.
References:Aruba VSX Design and Best Practices Guides (Active Gateway uniqueness, Interconnecting VSX clusters). This relates to "Network Resiliency and virtualization" (8%), "Routing" (16%), and
"Troubleshooting" (10%) objectives.

The question involves Acme Corp experiencing performance degradation due to overutilized uplinks from ToR-1 to Core-1 and Core-2, with a diagram (not provided) indicating a potential MSTP (Multiple Spanning Tree Protocol) issue. The task is to identify valid reasons for uplink overutilization.
* Analysis of Options:
* Option A:Incorrect. Incorrect root bridge configuration (e.g., Core-2 as root) may cause suboptimal paths but is not directly linked to uplink overutilization without further context.
* Option B:Correct. Inconsistent VLAN-to-instance mappings across switches can cause MSTP to block unexpected ports, funneling traffic through fewer uplinks and causing overutilization.
* Option C:Incorrect. Firmware mismatches may cause compatibility issues but are unlikely to directly cause uplink overutilization.
* Option D:Correct. Using the default MSTP region configuration (e.g., default region name and revision) across switches can lead to all switches forming a single MSTP region, potentially causing suboptimal topology and uplink overuse.
* Option E:Incorrect. Running MSTP with admin-network port-type on uplinks and downlinks is not a standard cause of overutilization; it's a specific port role.
* Why B and D are Correct:MSTP relies on consistent region configurations (region name, revision number, VLAN-to-instance mappings) to create efficient topologies. If VLAN-to-instance mappings differ (Option B), switches treat each other as separate regions, leading to blocked ports and traffic concentration on fewer uplinks, causing overutilization. Similarly, using the default MSTP region configuration (Option D) without customizing the region name or revision can result in all switches forming a single region with suboptimal spanning tree instances, potentially overloading specific uplinks. Both issues disrupt MSTP's ability to balance traffic across redundant paths, aligning with HPE Aruba Networking's MSTP troubleshooting scenarios.
* Relevance to Certification Objectives:
* Network Resiliency and Virtualization (8%):Troubleshooting MSTP for redundancy and fault tolerance.
* Switching (19%):Diagnosing Layer 2 issues, including MSTP misconfigurations.
* Performance Optimization (6%):Remediating uplink utilization issues.
References:
HPE Aruba Networking AOS-CX Configuration Guide: MSTP Configuration, detailing region and VLAN mapping.
HPE7-A06Study Guide: Covers MSTP troubleshooting and optimization.
HPE Aruba Networking Technical Documentation: MSTP Best Practices and Troubleshooting.

The problem describes uplink congestion affecting VoIP traffic (marked with DSCP EF, value 46) on AGG-
1's LAG1 uplink. The existing configuration classifies this traffic into voip_class and applies voip_policy inbound, setting local-priority 6. To improve reliable forwarding during congestion, VoIP traffic needs strict priority queuing on the egress interface (LAG1).
* Analysis of Options:
* Option A applies a QoS schedule profile globally but doesn't modify the policy's local-priority or apply the schedule profile specifically to the congested LAG.

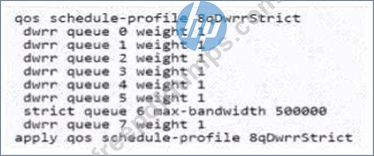

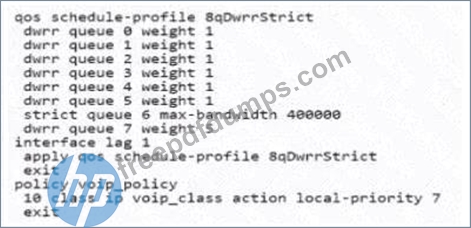

* Option B modifies voip_policy to set local-priority 7 (mapping DSCP 46 traffic to queue 7) and applies the 8qDwrStrict schedule profile to the egress interface lag 1. In the 8qDwrStrict profile, queue 7 is configured for strict priority, ensuring voice traffic gets precedence over lower-priority traffic during congestion. This aligns with best practices for QoS for VoIP.

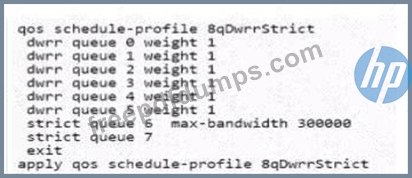

* Option C also sets local-priority 7 and applies the schedule profile to lag 1, but the profile itself configures queue 7 with DWRR (Deficit Weighted Round Robin) instead of strict priority, which is less suitable for delay-sensitive voice traffic.
* Option D applies a schedule profile globally and uses DWRR for queue 7.
* Conclusion:Option B is the correct solution because it maps the DSCP EF traffic to the highest local priority (7) and applies a QoS schedule profile to the specific congested uplink (lag 1) that treats queue
7 with strict priority. This ensures voice traffic is prioritized reliably.
References:AOS-CX QoS Guide (specifically sections on Classification, Queuing, Scheduling Profiles, Strict Priority vs. DWRR, applying policies to interfaces/LAGs), DSCP to Queue mapping concepts. This relates to the "Performance Optimization" (6%) and "Connectivity" (9%) objectives.

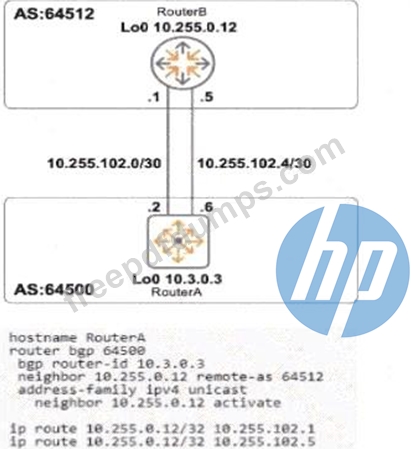

Analyze Topology and Existing Configuration:
* RouterA (AS 64500) peers with RouterB (AS 64512) using eBGP.
* Peering is configured between loopback interfaces (RouterA Lo0 10.3.0.3 to RouterB Lo0 10.255.0.12).
* Two parallel physical links connect the routers (10.255.102.0/30 and 10.255.102.4/30).
* RouterA has two static routes pointing to RouterB's loopback (10.255.0.12/32), one via each physical link's next hop (10.255.102.1 and 10.255.102.5). This provides reachability to the BGP peer address over both paths.
* RouterA's BGP config activates the neighbor 10.255.0.12 for IPv4 unicast but is missing key commands for stable loopback peering and load balancing.
Goal:Permit load balancing for traffic exchanged via BGP between RouterA and RouterB. This requires BGP ECMP (Equal Cost Multi-Path).
Requirements for eBGP ECMP over Loopbacks:
* Stable Peering:Peering must use loopback addresses. This requires:
* update-source loopback <id>: To source BGP TCP packets from the loopback IP.
* ebgp-multihop <ttl>: Because loopbacks are not directly connected (TTL > 1 needed).
* ECMP Enabled:BGP must be configured to allow multiple paths in the routing table. This requires:
* maximum-paths <n> (or maximum-paths ebgp <n>): To allow more than the default 1 path.
* Equal Paths:BGP must see multiple paths to thesameprefix learnedfrom RouterBthat are considered equal based on BGP path selection attributes (Weight, Local_Pref, AS_Path, Origin, MED, etc.). Since routes are learned from the same neighbor IP (RouterB's loopback), these attributes will likely be identical for routes learned via this peering. RouterA already has equal static routestothe BGP next hop (10.255.0.12).
