The BGP state on a VSX pair is stuck (not 'Established') after a recent firewall change at the WAN/Internet edge, where the BGP peering likely occurs.
* BGP and Firewalls:BGP establishes sessions usingTCP port 179. Firewalls located between BGP peers must explicitly permit TCP port 179 traffic bidirectionally for the peering to establish and maintain. Firewall changes are a frequent cause of broken BGP sessions.
* Troubleshooting Steps After Firewall Change:The most logical first step is to verify that the firewall change did not inadvertently block TCP port 179 between the configured BGP neighbor IP addresses.
* Analysis of Options:
* A: Restarting routing service is disruptive and not the first step.
* B: Confirming that appropriate TCP ports (specifically 179) are still allowed through the firewall directly addresses the most probable cause related to the firewall change event.
* C: Restarting NAT service is likely irrelevant unless NAT is incorrectly configured for BGP peers.
* D: Confirming the peer AS is a basic configuration check but less likely related to thefirewall changeevent than port blocking.
* Conclusion:Given the problem occurred immediately following a firewall change, verifying that the firewall still permits TCP port 179 between the BGP peers is the most direct and likely troubleshooting step.
References:BGP protocol specifications (RFC 4271), Firewall management principles, Network troubleshooting methodology. This relates to "Routing" (16%), "Security" (10%), and "Troubleshooting" (10%) objectives.

The issue is that switches are taking a very long time to execute commands. The question points towards the AAA configuration as the context (though the specific configuration is missing).
* AAA and Command Latency:When AAA servers (like TACACS+ or RADIUS) are used for authentication, authorization, or accounting, the switch must communicate with these servers.
* Impact of Unreachable Servers:If the primary AAA server configured on the switch becomes unreachable (due to network issues, server downtime, or firewall rules), the switch will attempt to connect, wait for a configured timeout period (often several seconds), and only then potentially try a secondary server or fall back to local credentials (if configured). This connection attempt and timeout period occurring before command execution (if command authorization is enabled) or during login introduces significant delays.
* Analysis of Options:
* A: Too many administrators might strain resources, but AAA timeouts cause more predictable, long delays per action.
* B: Authentication fail-through only comes into playafterthe primary server times out. The timeout itself causes the delay.
* C: An unreachable primary TACACS+ (or RADIUS) server is a classic cause of slow logins and command execution delays due to connection timeouts.
* D: A DoS attack might cause general slowness but isn't specifically linked to the AAA configuration context provided.
* Conclusion:The most likely cause, given the context of AAA configuration and the symptom of slow command execution, is that the primary configured AAA server (like TACACS+) is unreachable, causing the switch to wait for timeouts.
References:AOS-CX Security Guide (AAA, TACACS+, RADIUS), general network troubleshooting for AAA latency. This relates to "Authentication/Authorization" (9%) and "Troubleshooting" (10%) objectives.

The question involves intermittent PoE-powered device power loss on port 1/1/1 of an AOS-CX switch (Acc-
1), with CLI output (not provided) indicating a PoE issue. The task is to identify a probable cause.
* Analysis of Options:
* Option A:Incorrect. AOS-CX switches typically support PoE Class 4 (802.3at, 30W), sufficient for most devices.
* Option B:Correct. If the switch's PoE power budget is exceeded, it may deny power to port 1/1
/1, causing intermittent device failures.
* Option C:Incorrect. Low PoE port priority may deprioritize the port but is less likely to cause complete power loss compared to budget issues.
* Option D:Incorrect. Manual disabling of PoE would cause consistent power loss, not intermittent issues.
* Why Option B is Correct:AOS-CX switches have a finite PoE power budget (e.g., 370W or 740W, depending on the model and power supply). If the total power demand from connected devices exceeds this budget, the switch denies power to some ports, often intermittently as devices cycle or negotiate power. For port 1/1/1, this could manifest as random power loss for the connected device. The CLI output likely shows a "power denied" status (e.g., via show power-over-ethernet brief). Checking the PoE budget (show power-over-ethernet) and upgrading power supplies or prioritizing critical ports resolves the issue, aligning with HPE Aruba Networking's PoE troubleshooting guidelines.
* Relevance to Certification Objectives:
* Connectivity (9%):Troubleshooting PoE deployment issues.
* Troubleshooting (10%):Diagnosing power-related issues in campus networks.
* Switching (19%):Implementing PoE configurations for Layer 2 devices.
References:
HPE Aruba Networking AOS-CX Configuration Guide: PoE Configuration and Troubleshooting.
HPE7-A06Study Guide: Covers PoE management and diagnostics.
HPE Aruba Networking Technical Documentation: PoE Budget Troubleshooting.

The issue involves a new access switch's port being automatically disabled when connected to an aggregation switch, likely due to a Spanning Tree Protocol (STP) protection mechanism.
* Analysis of Options:
* Option A (Disable bpdu-filter):BPDU filtering prevents BPDUs from being sent or processed, which could cause loops, not resolve the issue.
* Option B (Disable root-guard):Root guard prevents a port from becoming the root bridge but does not cause port disablement in this context.
* Option C (Disable loop-guard):Loop guard prevents alternate ports from becoming designated but is unrelated to port disablement.
* Option D:Correct. Disabling BPDU guard on the aggregation switch's interface prevents it from disabling the port when it receives BPDUs from the new access switch.
* Why Option D is Correct:BPDU guard is an STP feature that disables a port if it receives BPDUs, assuming an unauthorized device is connected. When a new access switch isconnected, it sends BPDUs as part of normal STP operation, triggering BPDU guard on the aggregation switch and disabling the port. Disabling BPDU guard on the aggregation switch's interface (e.g., no spanning-tree bpdu-guard) allows the access switch to participate in STP without being disabled, resolving the issue while maintaining network stability.
* Relevance to Certification Objectives:
* Network Resiliency and Virtualization (8%):Involves troubleshooting STP mechanisms for fault tolerance.
* Troubleshooting (10%):Includes diagnosing and remediating STP-related issues in campus networks.
* Switching (19%):Covers Layer 2 technologies like STP and its protection features.
References:
HPE Aruba Networking AOS-CX Configuration Guide: Spanning Tree Configuration, detailing BPDU guard.
HPE7-A06Study Guide: Covers STP troubleshooting and protection mechanisms.
HPE Aruba Networking Technical Documentation: STP Best Practices, explaining BPDU guard behavior.

Explanation:

To enable DHCP Endpoint Profiling, the switch needs to forward relevant DHCP packets from the client to the ClearPass server. The most common method is configuring the switch to act as a DHCP relay agent for the ClearPass server IP address on the client VLAN's Switched Virtual Interface (SVI).
In scenarios where port access control (like 802.1X or MAC Auth) is enabled, clients might need to send DHCP requestsbeforethey are fully authenticated. To allow this while maintaining security, a pre- authentication role with limited access (specifically allowing DHCP) can be applied to the port initially.

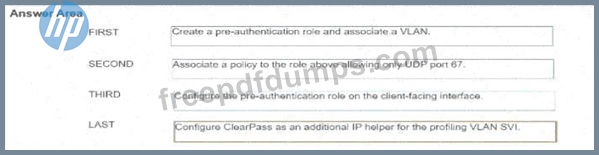

The logical sequence based on the provided steps, assuming a pre-authentication workflow is intended, is:
* Create the role:Define the pre-authentication role container and associate it with the appropriate initial VLAN if needed.
* Permit DHCP in the role:Apply an Access Control List (ACL) or policy to this role that permits the necessary DHCP traffic (UDP ports 67 and 68). The step provided only mentions UDP 67, which allows the client's initial Discover/Request packets towards the server/relay. (A complete solution requires allowing return traffic on UDP 68 as well).
* Apply the role:Configure the client-facing physical interface to use this pre-authentication role before the final role is assigned post-authentication.
* Configure DHCP Relay:Configure the ip helper-address <clearpass_ip> command on the client's VLAN SVI. This instructs the switch to forward the DHCP packets it receives from clients in that VLAN to the ClearPass server (in addition to forwarding them to the actual DHCP server). ClearPass receives these packets and extracts information for profiling.
This sequence ensures that even before full authentication, DHCP is permitted, and the necessary packets are relayed to ClearPass for profiling.
References:AOS-CX Security Guide (Port Access, Roles, AAA), AOS-CX IP Helper / DHCP Relay Guide, ClearPass Deployment Guides (Endpoint Profiling using DHCP). This relates to "Authentication
/Authorization" (9%), "Security" (10%), and "Switching" (19%).
